MK3 Caddy (2K) Rear Lowering Kit

Works with All Caddy Models & engine sizes from 2004 - 2010 MK3 (2K)

 Including SWB, Maxi, Kombi, Life and vans

This kit will allow you to lower the rear of your MK3 (2K) Caddy with an adjustable ride height.

Available in 2 different lengths

Lowers Approx 40-120mm (depending on shackle size)

Its a design we have used for many years on the MK1 & 2 Caddys, and its proven to be the best way to lower the rear of any Caddy

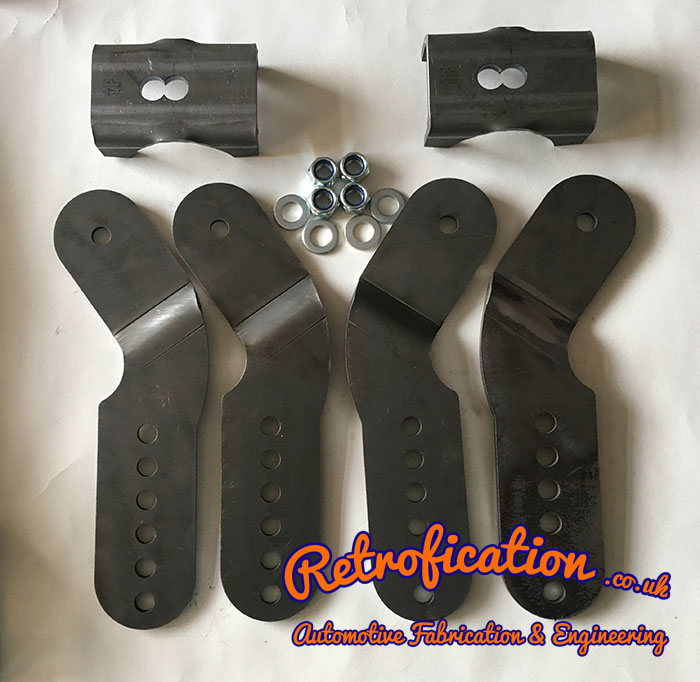

Included in the kit are:

2x Laser Cut & CNC folded Offset Weld-on Spring Saddles
4x Laser Cut & CNC folded Adjustable Spring Shackles
2x Damper Bolts & Nuts
4x Shackle Nuts
Link to fitting instructions

We recommend the 6 hole shackle for SWB Vans and 8 hole shackles for Maxis & Life models, or for SWB for a minimal drop in height

The offset on the saddle will help keep the wheels central within the rear arches, which is a problem with all the manufactured kits available today. BUT the biggest benefit of our kit is weight!

With these weld-on saddles you will save you a mammoth 6.7 Kgs in unsprung weight over the bolt on brackets, so if you know anything about suspension you will know this is a massive amount!

See the comparison picture above (I have not included the shackles weight as all types of kit have them)

And because you will not need to remove the original saddles the Caddy can easily be put back to standard height if required

Supplied in a raw steel finish to keep costs down which we can pass onto our customers

Benefits over other available solutions:

  1. Price Saving
  2. Weight Saving
  3. Central Axle Location





Please Note:

2010> Caddys with the single leaf springs will require that the location lug is cut off and then the leaf spring drilled to accept the earlier type location pin. If you are not prepared to do this then you will be better off with one of our bolt-on solutions.
