VW MK3 Caddy (2K) Adjustable & Extended Rear Spring Shackles

VW MK3 Caddy (2K) Adjustable & Extended Rear Spring Shackles
Zoom  Zoom
 VW MK3 Caddy (2K) Adjustable & Extended Rear Spring ShacklesVW MK3 Caddy (2K) Adjustable & Extended Rear Spring Shackles
Our Price:  £56.00(Inc. 20% VAT)(£46.67 Exc. VAT)
+
Size:

Brand:  Retrofication


Please note: These shackles will NOT lower your Caddy! They are used once the rear is lowered to be able to raise and give you an adjustable ride height.

If you want to lower you Caddy then please see our other listings for our weld on spring saddles & shackle combo.


So when you would use these shackles?




In 99% of cases when lowering the MK3 Caddy (2K) with an "axle flip" the suspension will need raising up again to make it remotely drivable!

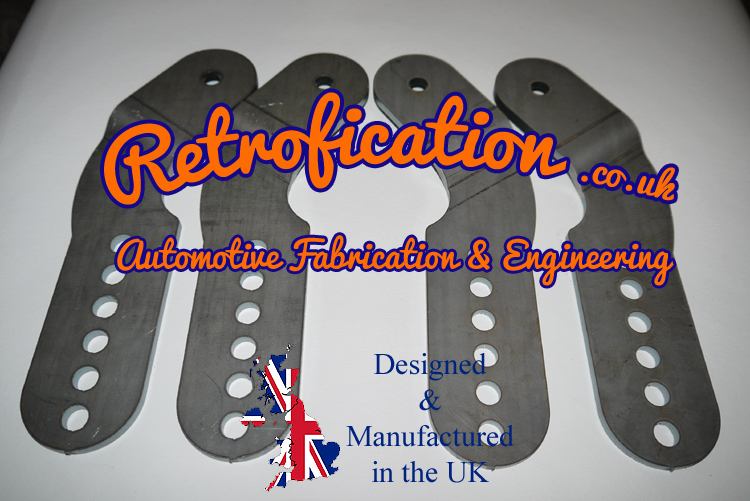

These Shackles are Laser cut & CNC folded for a perfect fit every time

Available in 6x & 8x 20mm increments so the you can adjust the height to suit your requirements

Supplied in a raw steel finish



They are fully adjustable by simply changing the increment bolt settings, the settings available are:

Std
+ 20mm
+ 40mm
+ 60mm
+ 80mm
+100mm

8 hole have additional
+ 120mm
+140mm


In real terms of actual ride height these settings will be approx half the above! ie. +10, +20, +30 +40 + 50mm and 8 hole +60 & +70



Will work with all MK3 Caddys, 2004 models onwards (Chassis 2K)

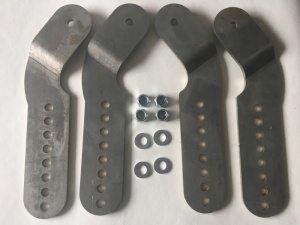

Supplied:

4x Shackles

4x Shackle Nuts

We recommend the 6 hole for the SWB and 8 hole for the Maxi & life models. You can use the 8 hole on the SWB if you require the extra height.



Now available are our offset weld on spring saddles for the MK3, these will work in a very similar way to our popular MK1 & MK2 saddles that we have been selling for many years. Not only will these saddles keep the wheels central within the arches (unlike all the commercial kits), they will also save several KG's in unsprung weight, which is a first for MK3 Caddys.





PLEASE NOTE:

The postage costs stated do not include "Out Of Areas":

  • Isle Of Man, Isle Of White, Northern Ireland, Republic of Ireland, Shetland & Orkney, Scottish Highlands & Islands, Channel Islands, Scilly Isles & BFPO. Inculuding the following postcodes: AB31, AB33-AB38, AB 44-45, AB 51-56, HS 1-9, IV 1-28, 1V 30-32, IV 36, IV 40-49, IV 51-56, IV 63, KA 27-28, KW 1-17, PA 20-38, PA 41-49, PA 60-78 , PH 19-26, PH 30-44, PH 49-50, TR 21-25, ZE 1-3, All BT, All GY, All JE, All IM
